Evaporation with Ledebuhr Proptec Rotary Atomizers

• Doesn’t clog like traditional pressure nozzles even with high TDS water
• Uses low pressure water supply – no expensive pressure pumps needed
• Minimal maintenance required – robust industrial design for difficult service & water
• Large water flow-rate range - from 0 to 8 GPM
• Produces billions more droplets than the typical pressure nozzles from same water volume.
• Produces a ~100 microns droplet (diameter of human hair) for optimum evaporation/drift
• Easily directed and adjusted toward intended target or desired area
• Use with or without fan-assist for drift control
• Electric, hydraulic powered units available
• Axial fan design mixes droplets efficiently into surrounding air

Control your pond levels by accelerating evaporation

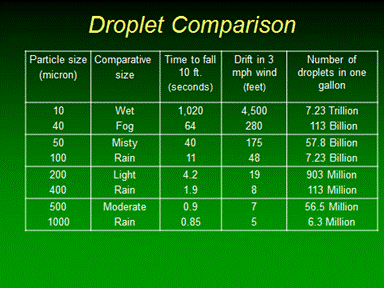

Control drift with controlled droplet size

Produced Water & Wastewater
Management Solution:

An array of Proptec atomizers can quickly evaporate your wastewater. A one million gallon pond (1 acre, 3’ deep) can be evaporated in as little as 1 month with a 4 atomizer array, or 2 weeks with 8 atomizers.

The area of one (1) gallon of pond water is 0.26 Sq. Ft.

• 100 micron droplets increase this surface area to 2,445 Sq. Ft.
• 200 micron droplets increase this surface area to 1,221 Sq. Ft.
• Higher surface area means higher evaporation rate
• Smaller droplets hang in the air longer, increasing evaporation rate

Rotary Atomizer Evaporation, 4-atomizer unit demonstration:
